AGB Eclipse 3.2 Heavy Duty Adjustable Concealed Hinge 80KG Capacity
Click Here - Product Description
Our AGB heavy-duty concealed hinge with steel levers, are designed for large or heavy sashes. They are suitable for use with overhead door closers and floor-mounted door stops. The Eclipse 3.2 HD is ideal for flush doors (rebated or non-rebated) and aluminium doors, thanks to its 4 mm fastening thickness. It comes with flush covers and is available in 6 finishes. Two hinges capacity is 60 kg. If the door is higher than 1600mm we suggest you add a third hinge in the central position to reduce strain on each hinge. Three hinges capacity is 80 kg. It is recommended that the third hinge is paired at the top when using an overhead door closer or if installed in high-traffic locations. The fourth hinge is recommended when using an overhead door closer and door seals.
Why choose this product?
- Compatible with many of Atlantic UK's door levers!
- 10 year mechanical guarantee subject to Atlantic UK Terms & Conditions.
- Italian-based, AGB specialise in the design and manufacture of quality locks, cylinders, and hinges. For seven decades, AGB has been providing the internal and external window and door hardware industry with optimal solutions.
Product Data
| SKU | Finish | Size | Dimensions | Unit of Sale |
|---|---|---|---|---|

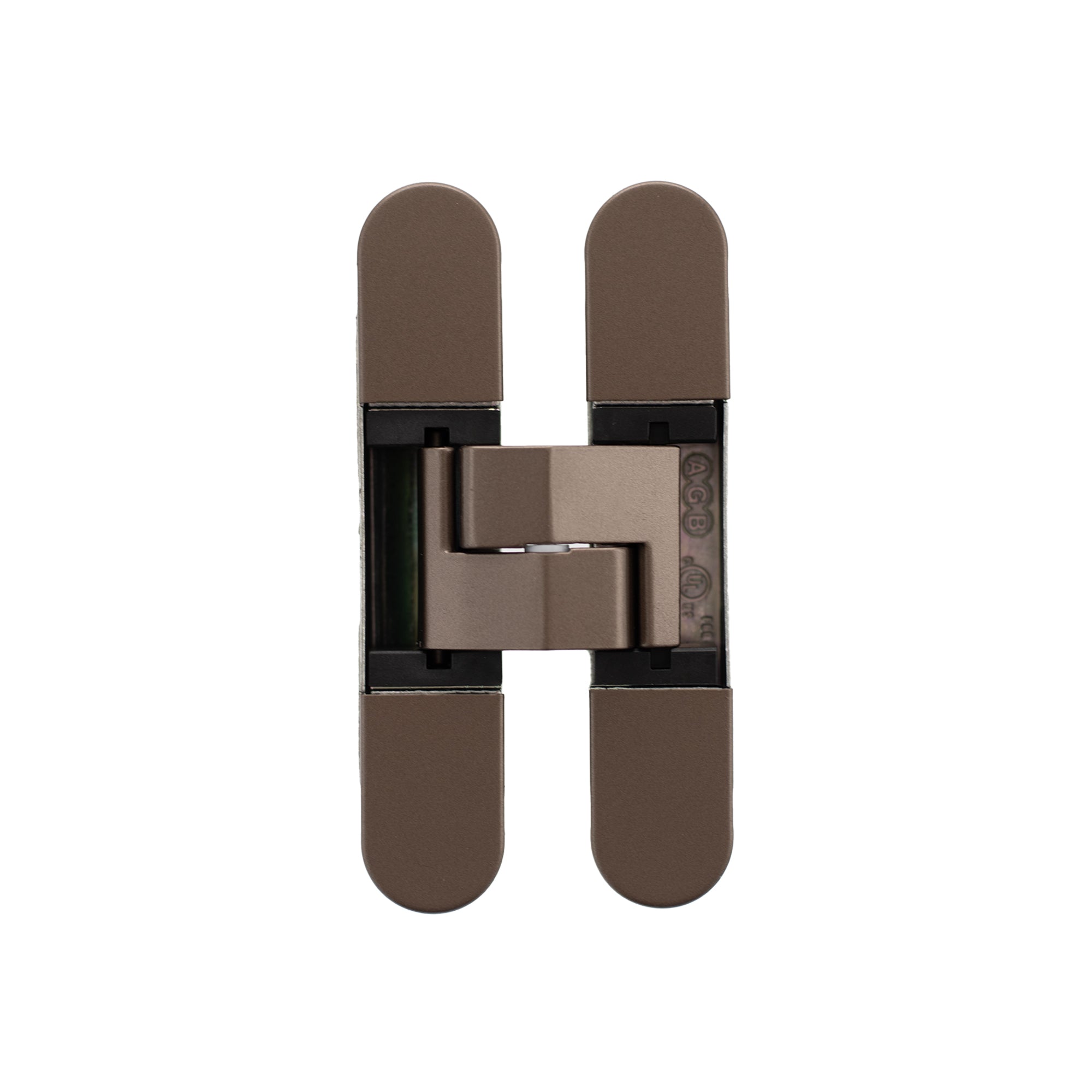

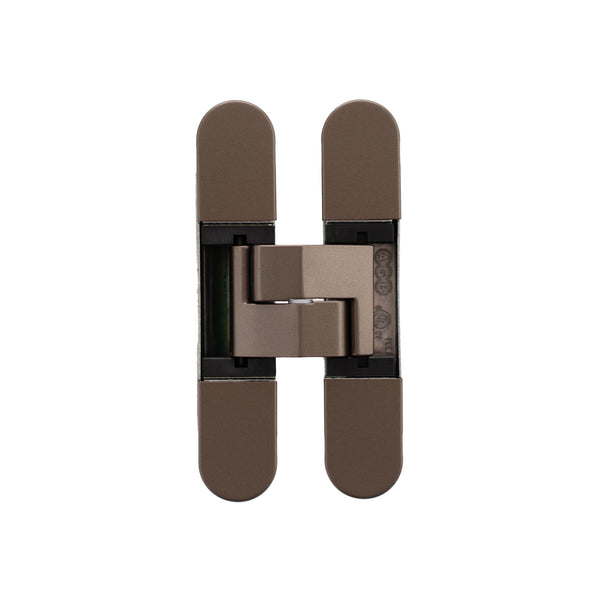

| AGBH32HDB | Bronze | 80kg Capacity | Concealed Hinge, 23x115mm cutout size, 3D adjustable, 2no Hinges suitable for 60kg Door, 3no Hinges suitable for 80kg Door | Each |

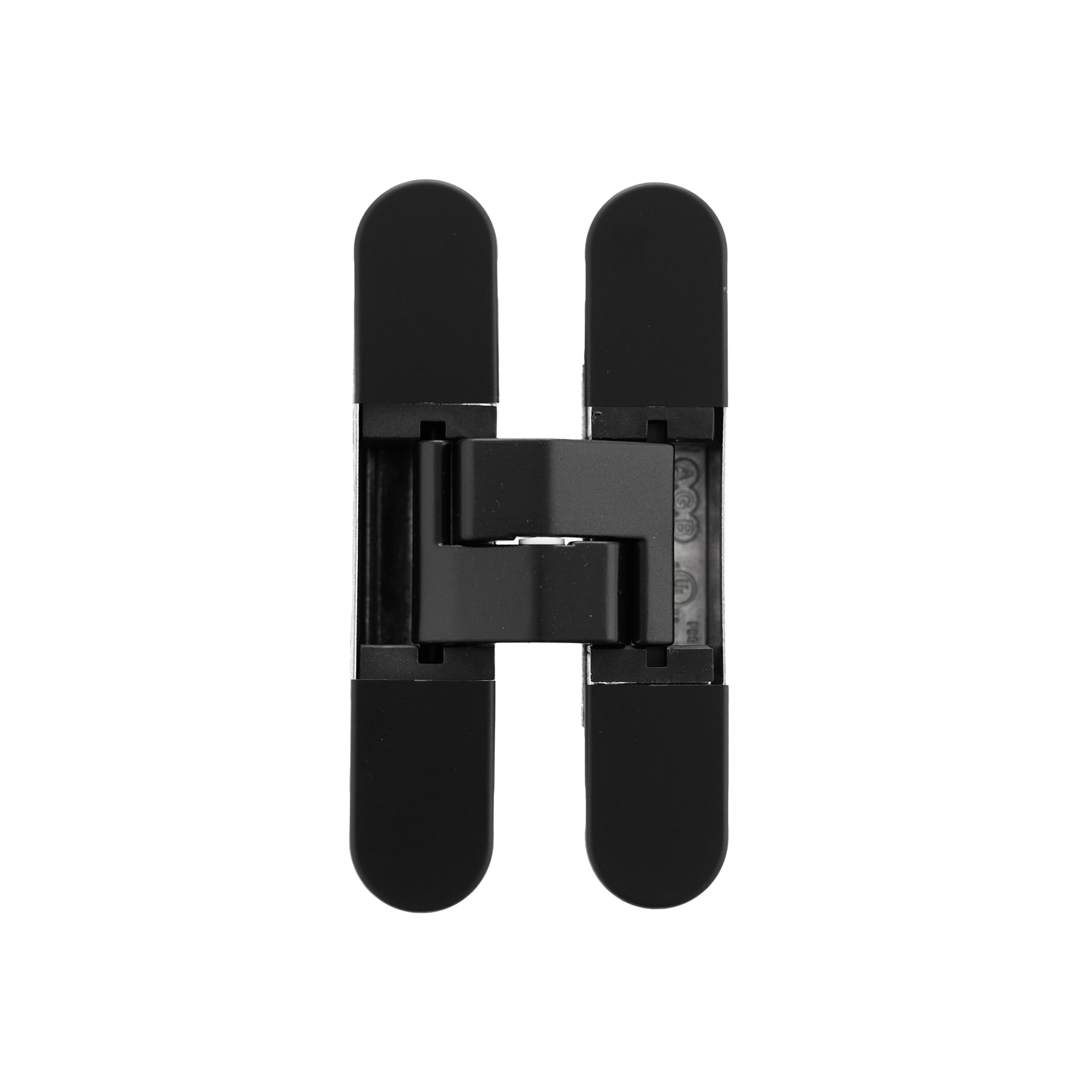

| AGBH32HDMB | Matt Black | 80kg Capacity | Concealed Hinge, 23x115mm cutout size, 3D adjustable, 2no Hinges suitable for 60kg Door, 3no Hinges suitable for 80kg Door | Each |

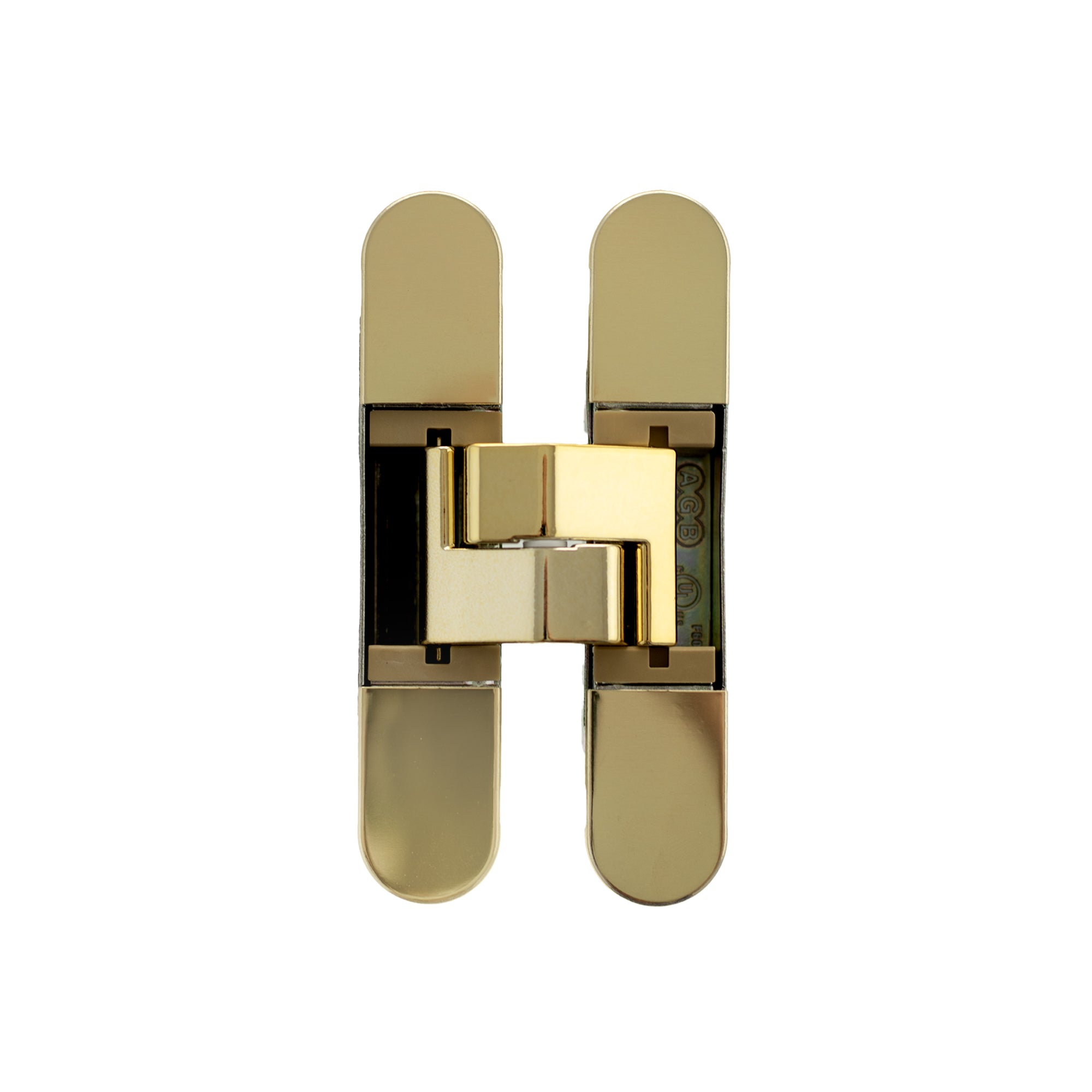

| AGBH32HDPB | Polished Brass | 80kg Capacity | Concealed Hinge, 23x115mm cutout size, 3D adjustable, 2no Hinges suitable for 60kg Door, 3no Hinges suitable for 80kg Door | Each |

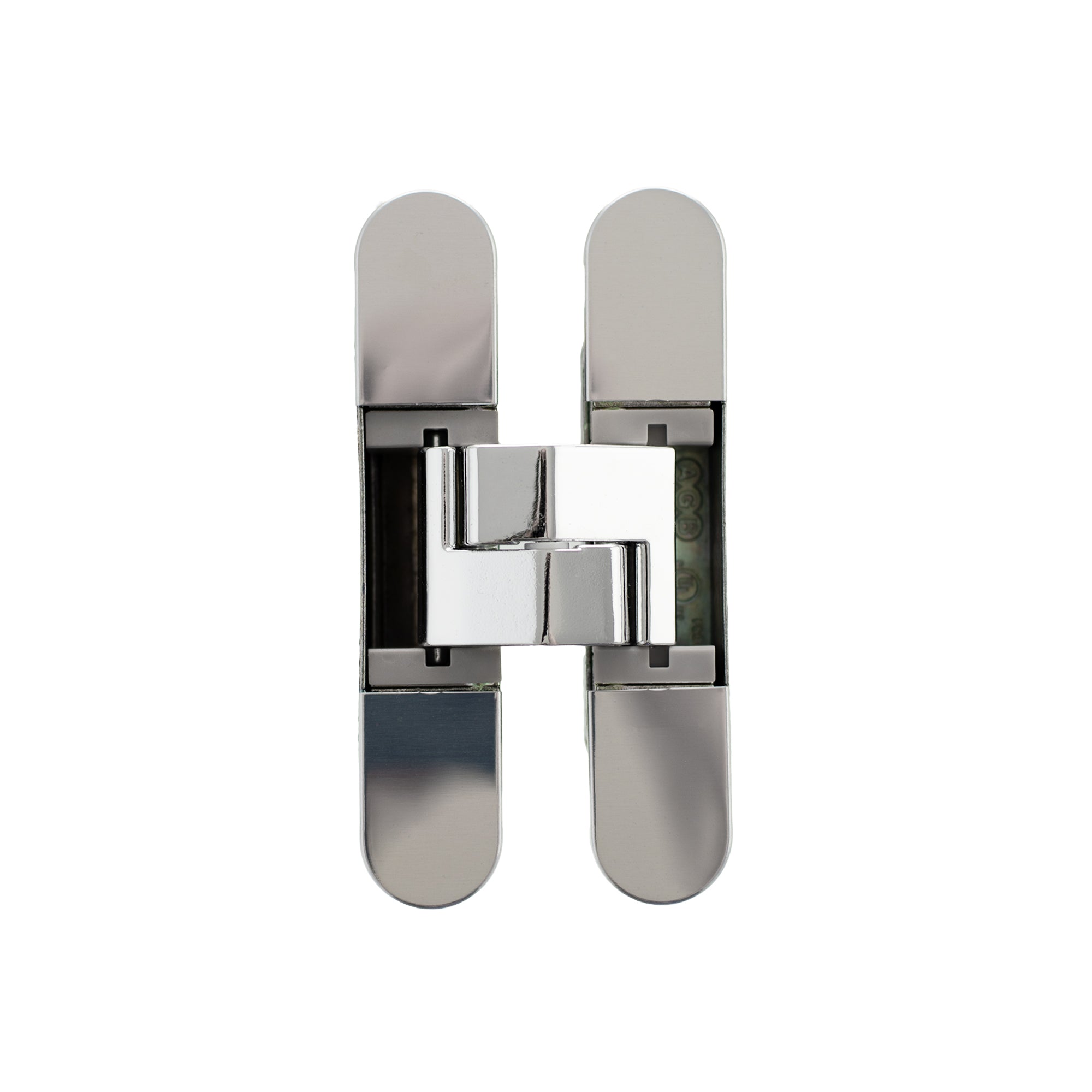

| AGBH32HDPN | Polished Nickel | 80kg Capacity | Concealed Hinge, 23x115mm cutout size, 3D adjustable, 2no Hinges suitable for 60kg Door, 3no Hinges suitable for 80kg Door | Each |

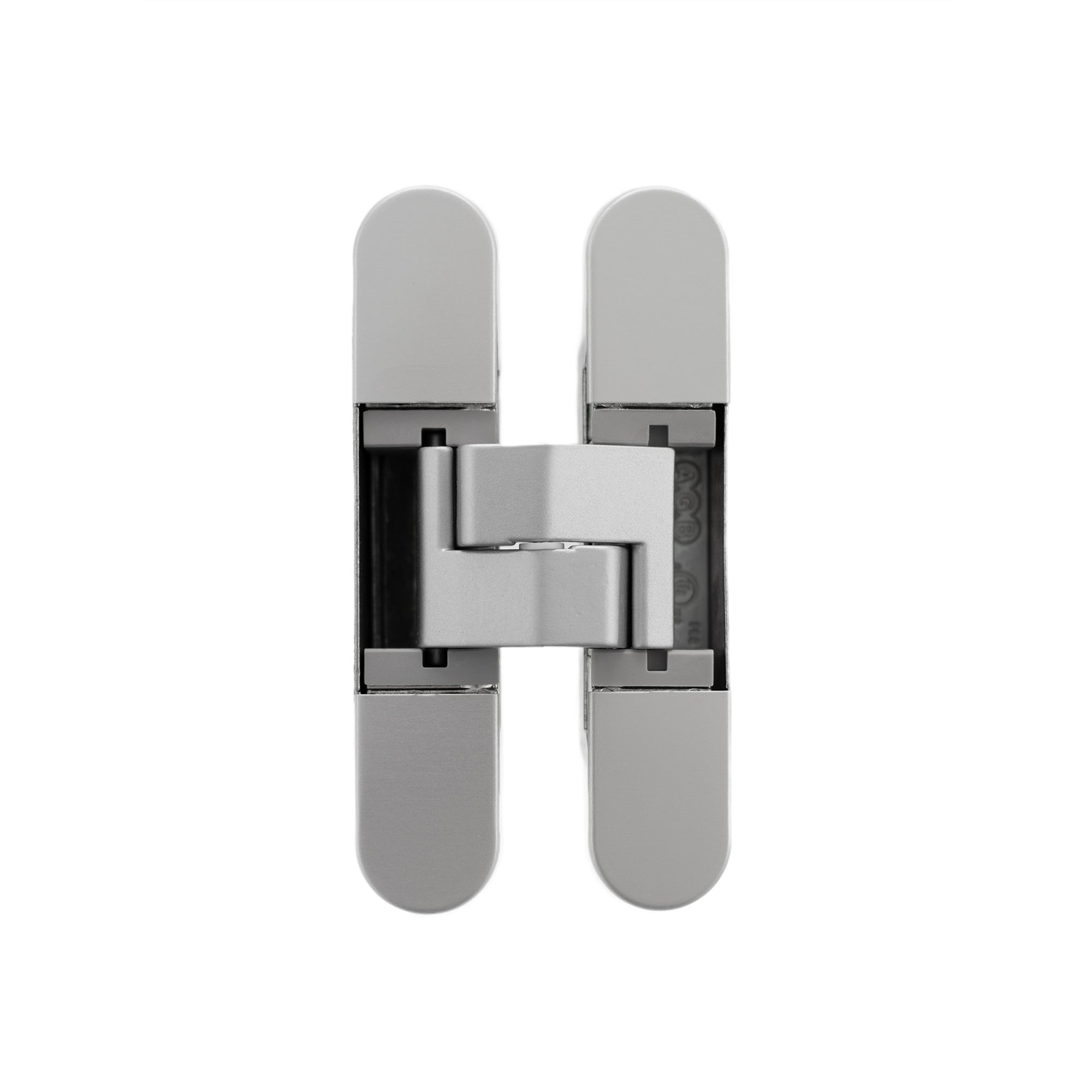

| AGBH32HDSC | Satin Chrome | 80kg Capacity | Concealed Hinge, 23x115mm cutout size, 3D adjustable, 2no Hinges suitable for 60kg Door, 3no Hinges suitable for 80kg Door | Each |

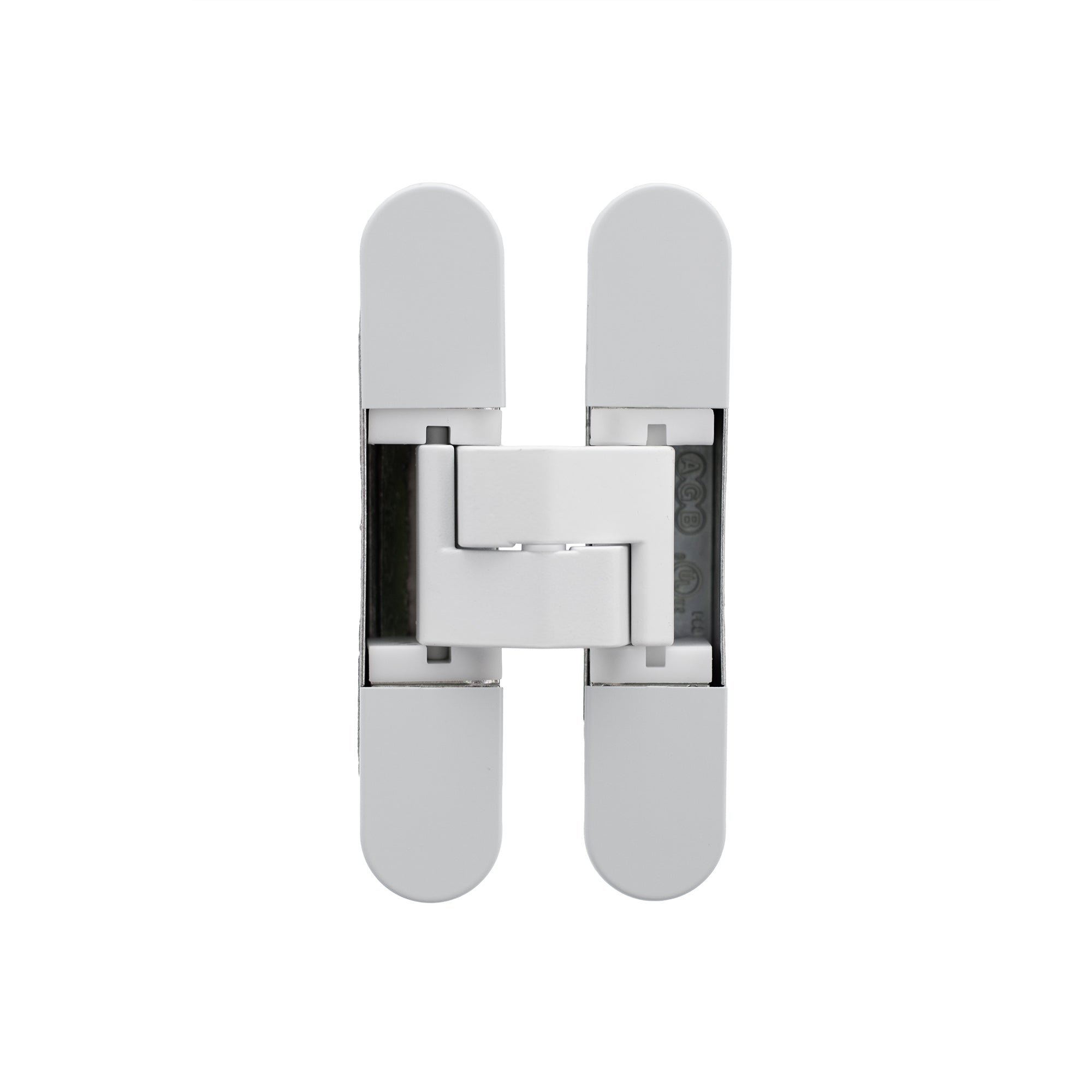

| AGBH32HDWH | White | 80kg Capacity | Concealed Hinge, 23x115mm cutout size, 3D adjustable, 2no Hinges suitable for 60kg Door, 3no Hinges suitable for 80kg Door | Each |
