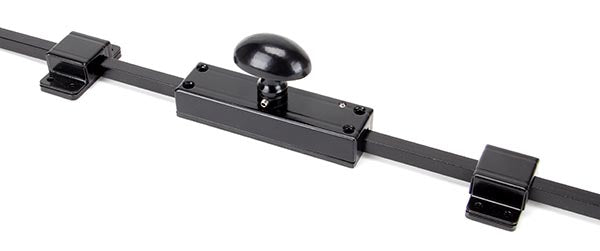

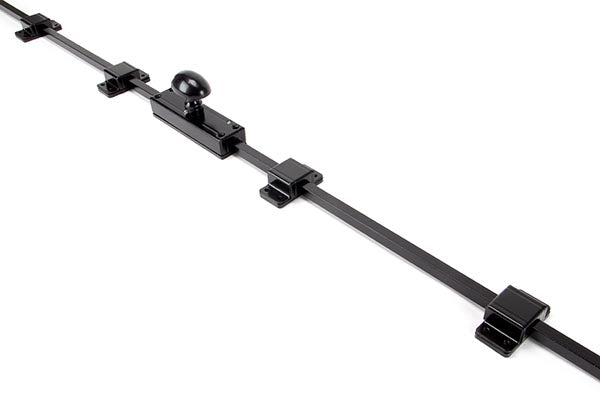

Face fixed internally as a decorative alternative to a concealed espagnolette system.

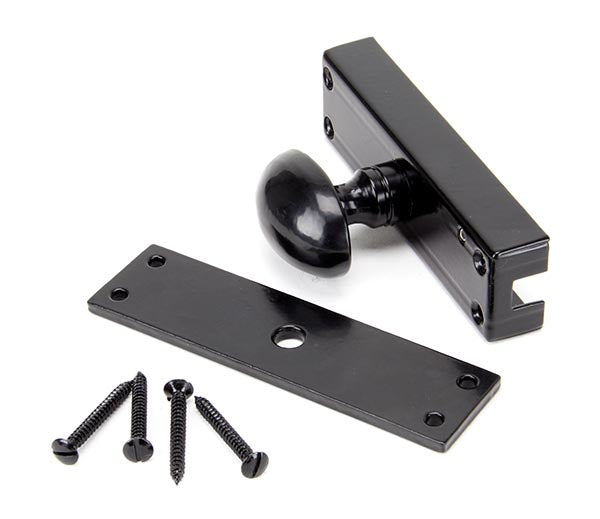

- Can be paired with the external knob if use from both sides of the door is required.

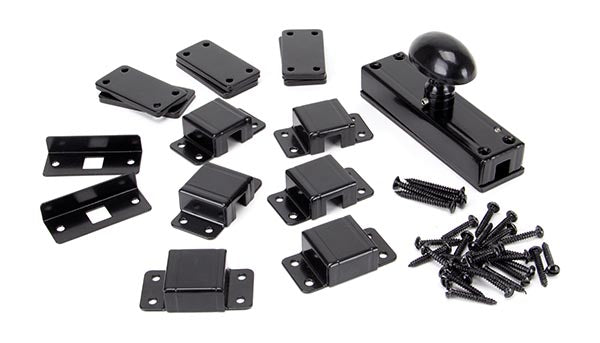

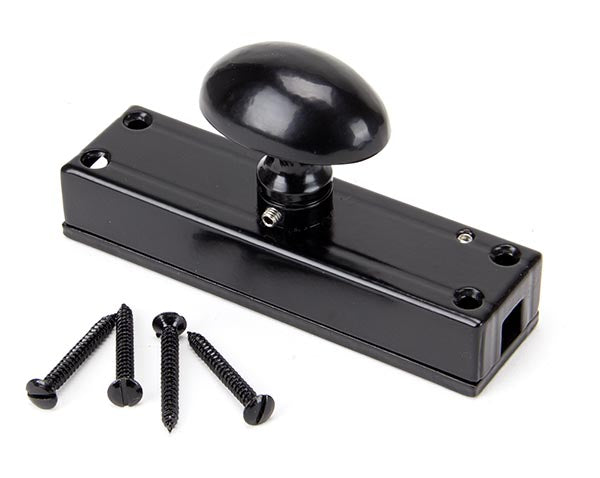

- Locks by way of grub screw in the body. Supplied with matching SS wood screws.

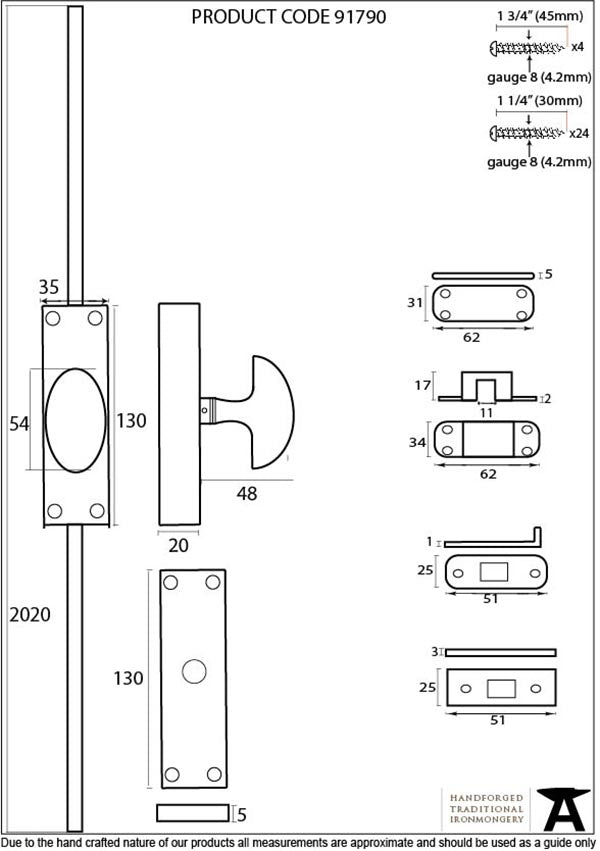

Overall Height: 2045mm
Maximum Door Height: 2020mm
Maximum Throw: 25mm

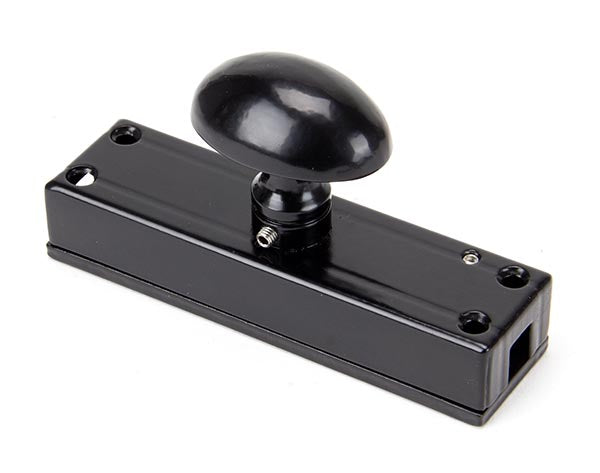

Centre Case Size: 130mm x 35mm

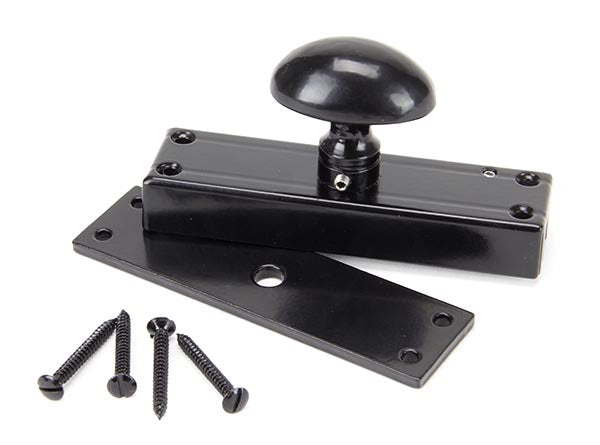

Knob Size: 54mm x 37mm
Knob Projection: 48mm

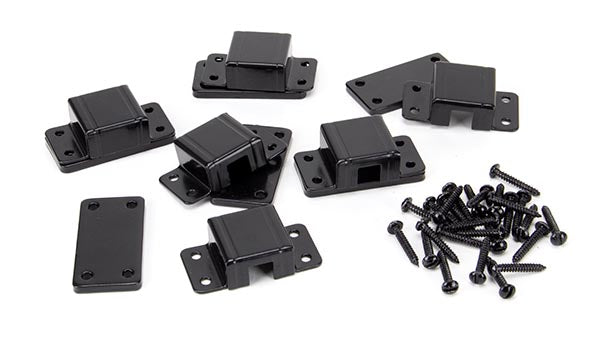

Receiver Bridge: 62mm x 34mm

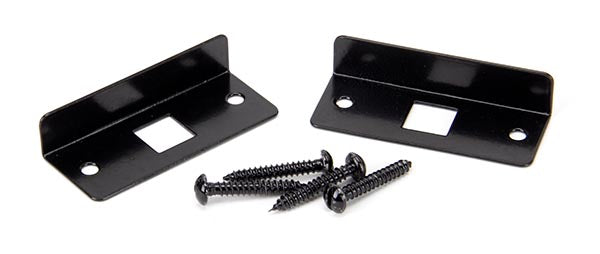

Angled Keep: 51mm x 25mm
Flat Keep: 51mm x 25mm
Our black finish is a popular choice in traditional settings, it has a subtle sheen and offers a bold contrast on both stained and painted timber alike. It is baked in a high-temperature oven giving it durable corrosion resistant properties.
