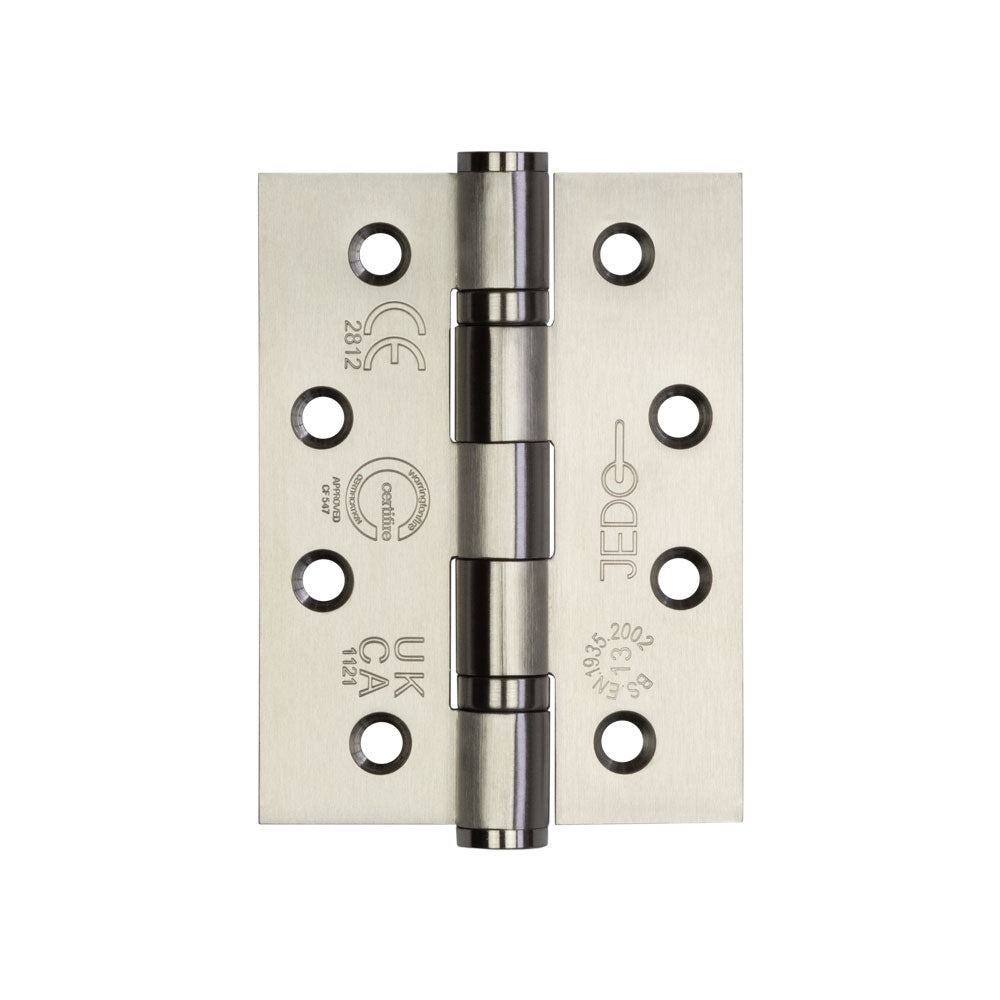

Certifire Stainless Steel Grade 13 Ball Bearing Hinges (PCK 3)
Click Here - Product Description
The Frelan J9533SSS Ball Bearing Hinge delivers heavy-duty performance in Grade 201 stainless steel. With FD30/60 fire rating, Certifire approval and a 120kg door weight capacity (3 hinges), it’s ideal for busy commercial interiors.
KEY FEATURES
Type: Ball Bearing Hinge
Material Grade: 201 Stainless Steel
Finish: Satin Stainless Steel
Mechnical Cycles: 200,000
Max Door Weight: 120kg (3 hinges)
Fire Rating: FD30/60
Certifire: Yes
Hinge Grade: 13
Corrosion Grade: 4
Mechanical Warranty: 10 Years
Use: Internal, Residential / Commercial
UKCA / CE: Yes / Yes
Fittings Included: Comes complete with 16 x wood screws (thread length: 28mm & thread diameter: 5mm)
Carton Qty: 40
DIMENSIONS
Height: 102mm
Width: 76mm
Knuckle: 14.5mm
Thickness: 3mm
Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.
We strongly recommend requesting a sample before committing to any cutting and drilling.
To maintain compliance with the fire standard for these hinges, it is recommended that you fit these with the relevant intumescent pack (GRA 1 & GRA 1.2)
STANDARDS & CERTIFICATIONS
n.b fire tested when fitted with Intumescent hinge pad.
- Packed Qty: 30
- Commodity Code: 83021000
- Finish: Satin Stainless Steel
- Pvd Finish: No
- Material: Stainless Steel
- Material Grade: 201g Stainless Steel
- Range: Jedo
- Overall Size: 102 x 76mm
- Leaf Thickness: 3mm
- Carryweight: Up to 120kg with 3 hinges
- Mechanical Cycles: 200,00 Cycles
- Ce / Ukca: BS EN 1935
- Corrosion Grade: Grade 4
- Fire Rating: FD30/60
- Certifire: Yes
- Mechanical Warranty: 10 Years
- Internal/External: Internal
- Residential/Commercial: Residential/Commerical
- Size: 102x76x3mm
- Sub Brand: Stainless Steel
