Certifire Stainless Steel Grade 13 Radiused Ball Bearing Hinges
Click Here - Product Description
A Grade 13 stainless steel ball bearing hinge is a heavy-duty hinge that supports doors up to 120 kg. The ball bearings ensure smooth opening and closing, making it ideal for frequent use in commercial and residential doors. The radiused corners fit doors with rounded edges and are ideal for CNC-machined installations, ensuring quick and precise manufacturing. sold in pairs
KEY FEATURES:

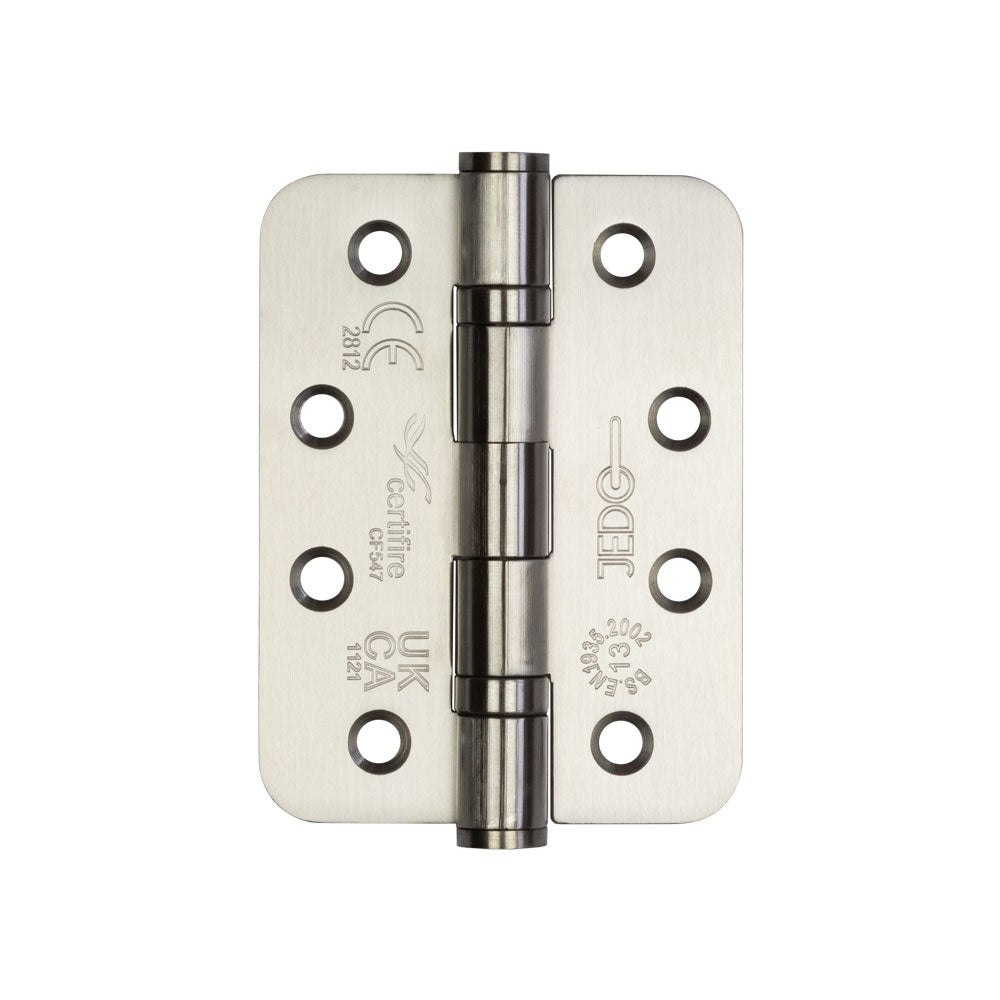

- Finish: satin stainless steel & polished stainless steel

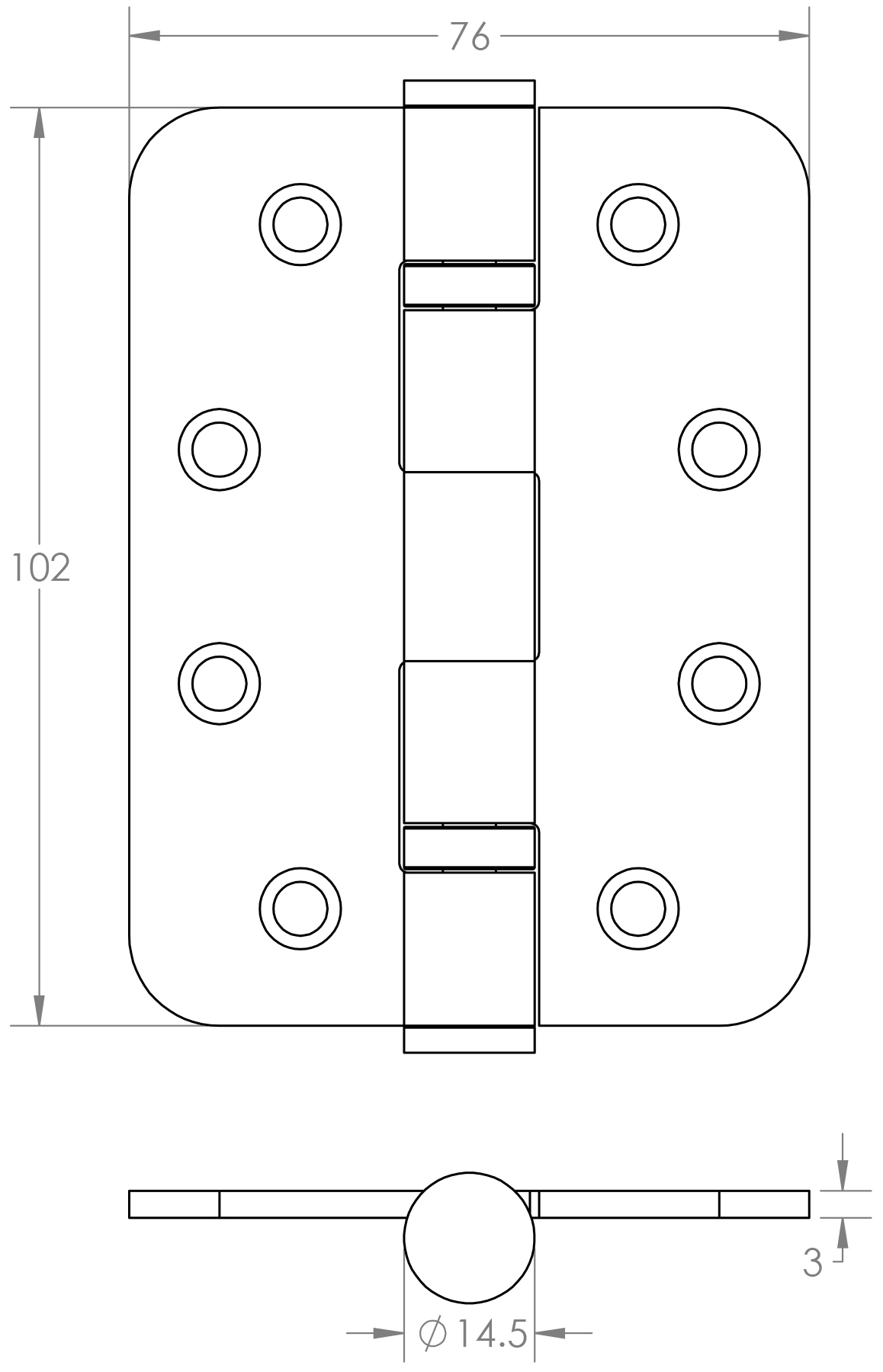

- Size: With dimensions of 102x76x2mm,
-
Standards: BS EN 1935
Mechnical Cycles: 200,000 - Certification: Certified under UKCA 1121 and CE 2812 standards
- Grade 13 Classification: Meets the Grade 13 standard, providing assurance of durability and strength in demanding environments which supports doors up to 120kg with 3 hinges
- Fire Resistance: FD30/60 & Certifire Approved
- Fittings Included: Comes complete with 16 x wood screws (thread length: 28mm & thread diameter: 5mm)
- Usage: Ideal for both commercial and residential settings where reliability and safety are essential.
We strongly recommend requesting a sample before committing to any cutting and drilling.
To maintain compliance with the fire standard for these hinges, it is recommended that you fit these with the relevant intumescent pack (GRA 3 & GRA 3.2)
STANDARDS & CERTIFICATIONS
- Packed Qty: 40
- Commodity Code: 83021000

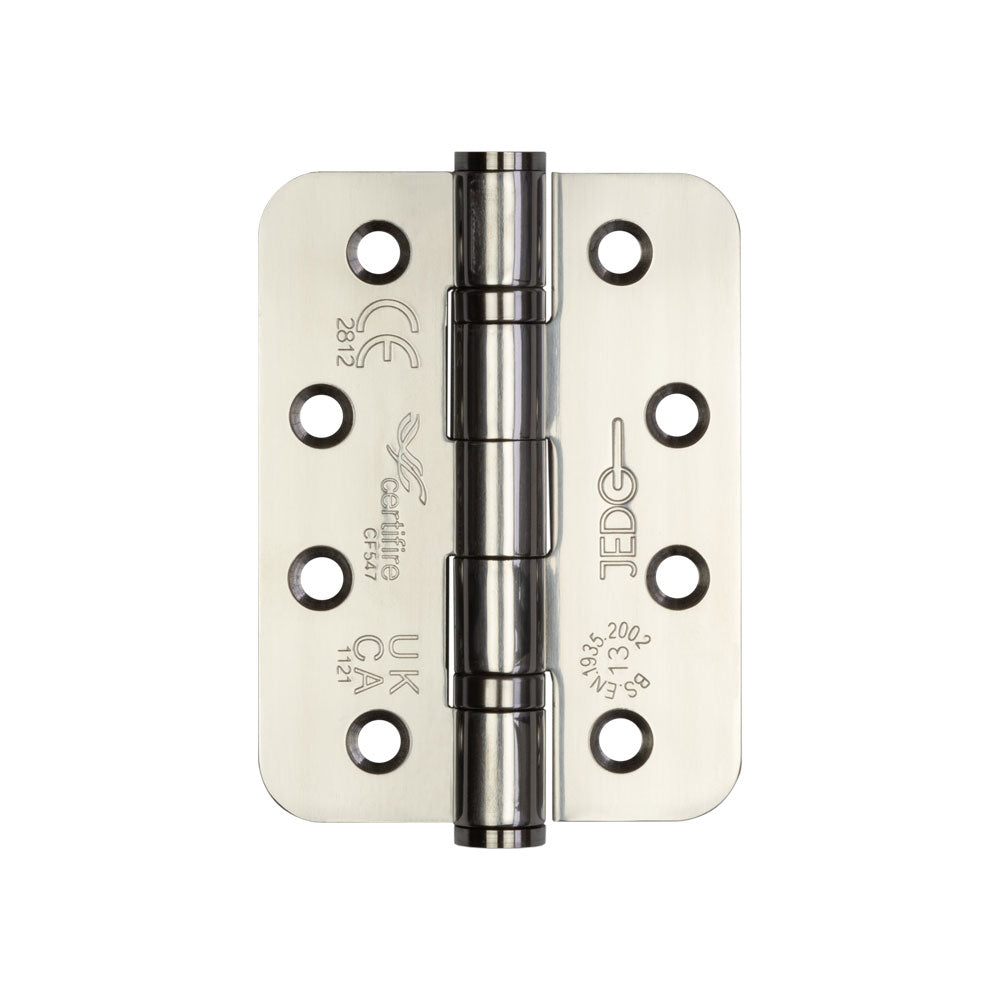

- Finish: Polished Stainless Steel
- Pvd Finish: No
- Material: Stainless Steel
- Material Grade: 201g Stainless Steel
- Range: Jedo
- Overall Size: 102 x 76mm
- Leaf Thickness: 3mm
- Carryweight: Up to 120kg with 3 hinges
- Mechanical Cycles: 200,00 Cycles
- Ce / Ukca: BS EN 1935
- Fire Rating: FD30/60
- Certifire: Yes
- Internal/External: Internal
- Residential/Commercial: Residential/Commerical
- Size: 102x76x3mm
- Sub Brand: Stainless Steel
