Ghost 3D Concealed Hinge
Click Here - Product Description

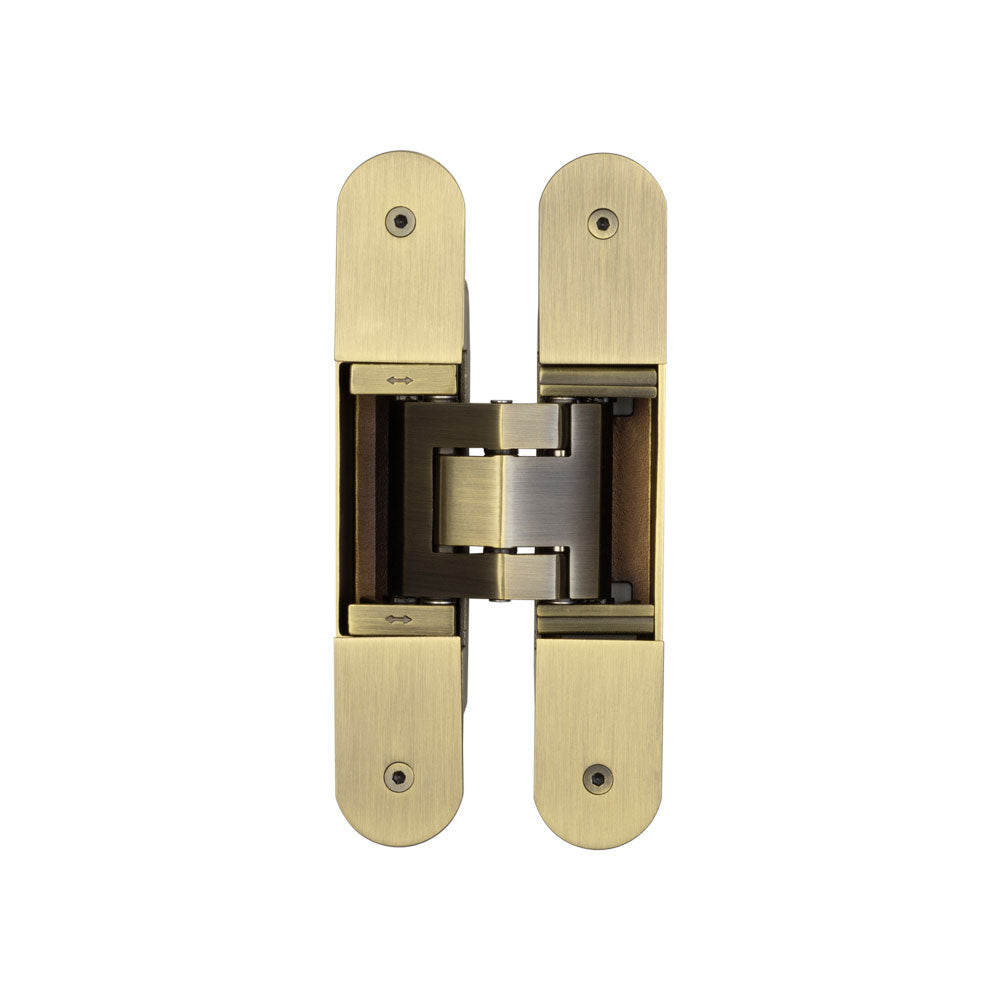

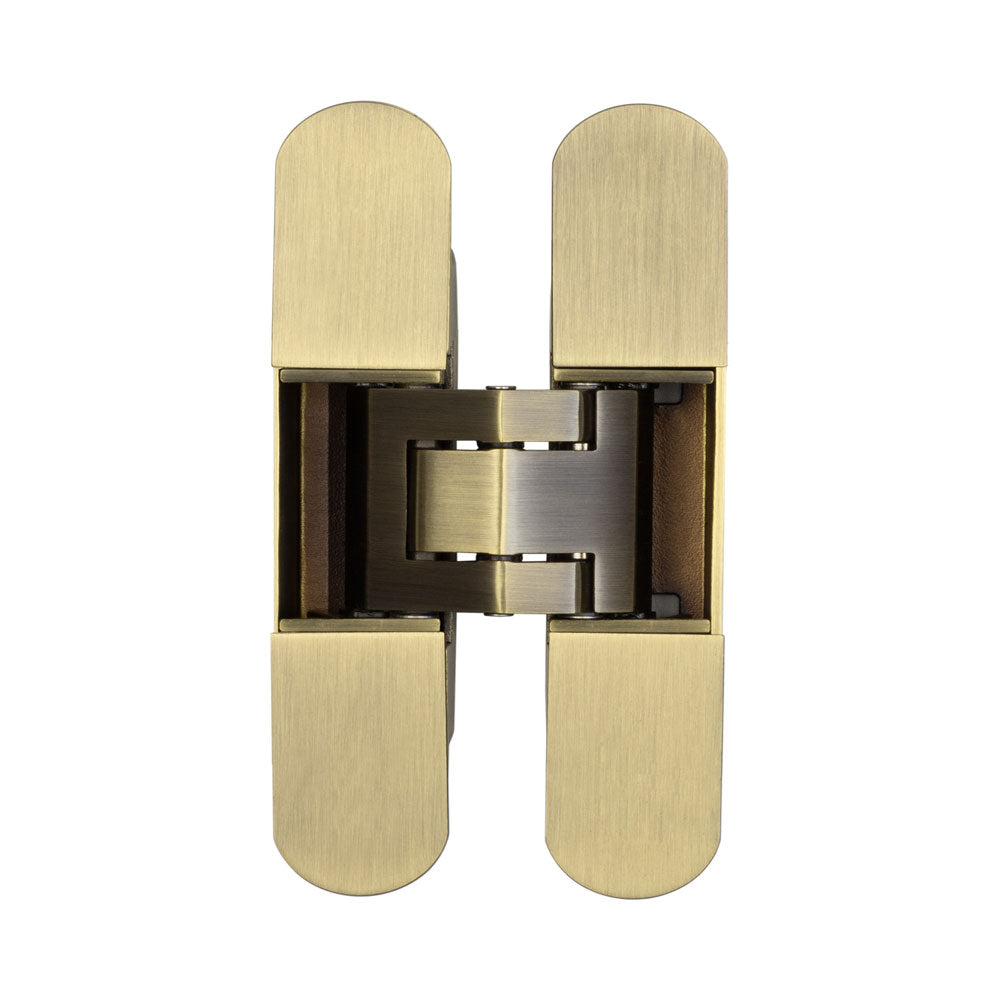

The Ghost Concealed Hinge CH100AB in Antique Brass offers a premium, fully hidden solution for internal residential and commercial doors. Designed for strength, smooth operation, and a flush finish, it supports heavy-duty applications while maintaining a sleek appearance. Fully 3D adjustable for precise alignment during installation.
KEY FEATURES:
- Suitable For: Flush, unrebated quality timber doors
- Finish: Antique Brass
- 3D Adjustable: Height, depth and lateral movement
- Material Grade: 304g Stainless Steel
- Concealed Fixings: Removeable Cover Plates
- Fire Rated: FD60 w/ 2mm Graphite Flexifire (Sold Separately GRA24)
- Door Weight: Up to 120KG when using 3 hinges
- Maintenance Free
- Fixings: 2 Allen keys 8No SSS wood screws 4No cover plates
- Suitable for: Internal - Residential / Commerical
- Mechanical Warranty: 5 Years

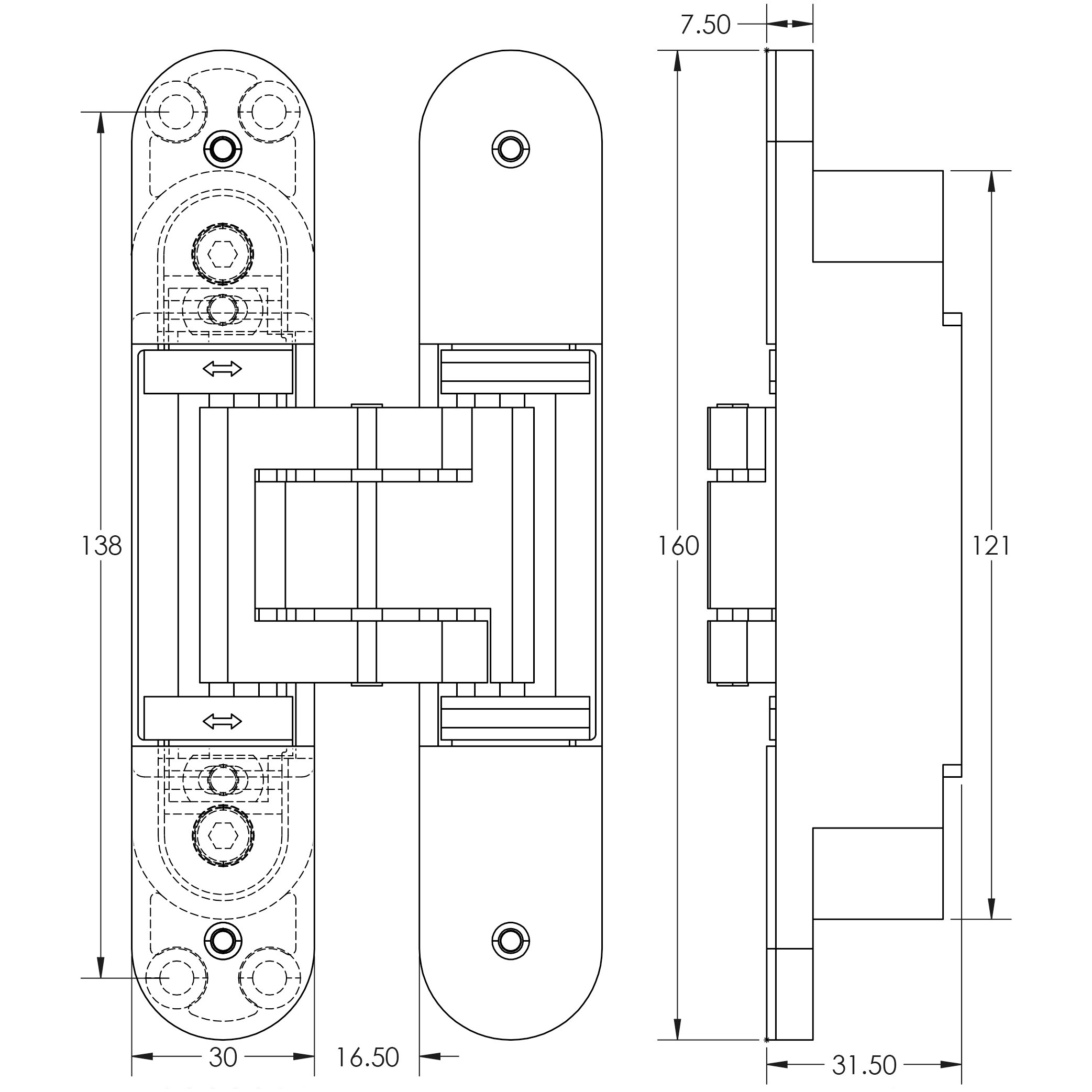

DIMENSIONS:
- Size: 160mm
- Overall Size: 160 x 31.5 x 76.5mm
- Projection: 7.5mm
- Fixing Centres: 138mm
- Thickness: 7mm
- Suitable Door Thickness: 35 – 54mm
We strongly recommend requesting a sample before committing to any cutting and drilling.
STANDARDS & CERTIFICATIONS
- Packed Qty: 20
- Commodity Code: 83021000
- Finish: Antique Brass
- Pvd Finish: No
- Material: Stainless
- Material Grade: 304g Stainless Steel
- Range: Ghost
- Overall Size: 160x31.5x76.5mm
- Projection: 7.5mm
- Feature Point 1: 2mm GRAPHITE FLEXIFIRE KIT
- Fixing Centres: 138mm
- Carryweight: 120kg
- Suitable Door Thickness: 35 - 54mm
- Fire Rating: FD60
- Internal/External: Internal
- Residential/Commercial: Residential/Commerical
- Size: 160mm
- Sub Brand: Jedo Contemporary +
- Pattern: Concealed Hinge
