Lever Action Flushbolts Radiused Forend
Click Here - Product Description

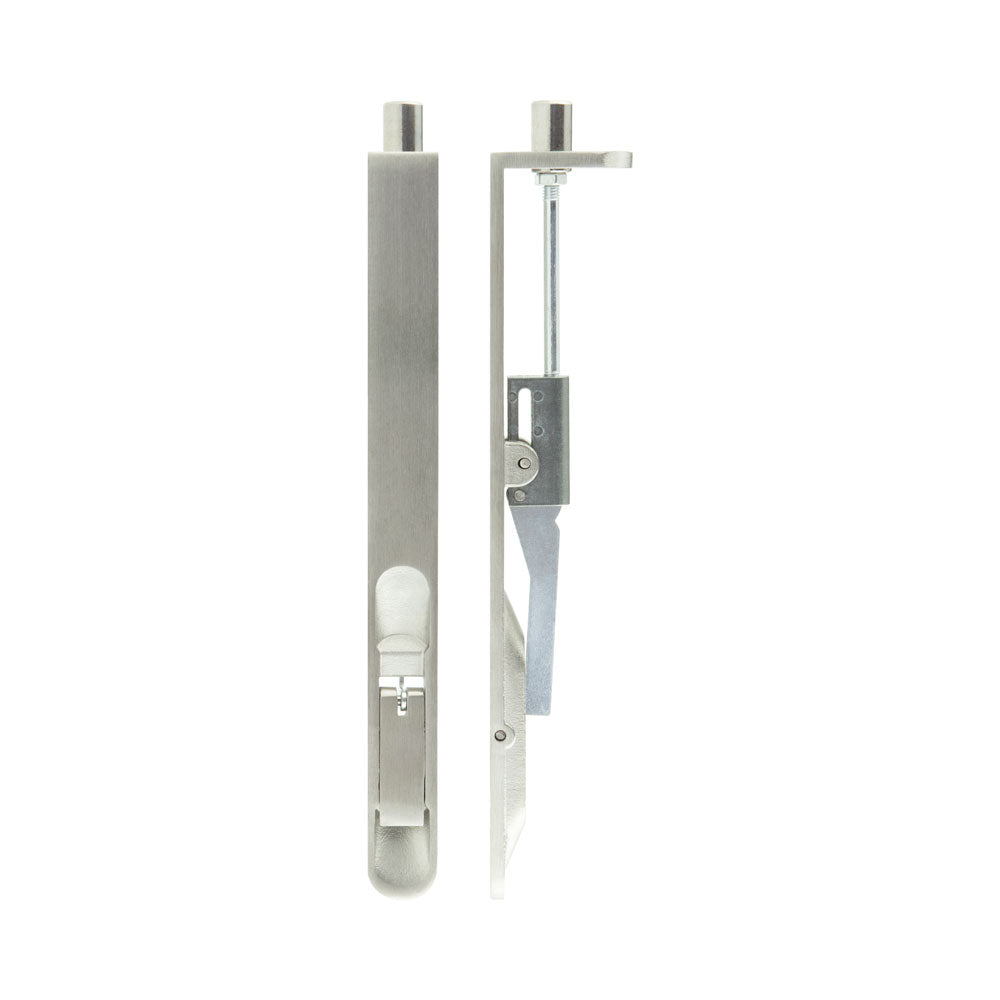

The Frelan JSS51R radius-end commercial flush bolt (200mm) combines clean styling with dependable, lever-action locking for double doors. The concealed, edge-mounted design preserves contemporary aesthetics and supports FD30/60 fire-door requirements.
KEY FEATURES:
Concealed Design: Flush with the door edge for a seamless look.
Finish: Satin Stainless Steel.
Certification: BS EN 12051
Corrosion Grade: 4
Fire Resistance: FD30/60
Fittings Included: Keep, 4 x Wood Screws.
Use: Suitable for Commercial settings.
Profile: Radius
Flush Bolts: Lever Action
Mechanical Warranty: 10 years
DIMENSIONS
Length: 200mm
Dia. Bolt: 11mm
Bolt Throw: 15mm
To maintain compliance with the fire standard for these flush bolts, it is recommended that you fit these with the relevant intumescent pack (GRA 7 & GRA 8)
STANDARDS & CERTIFICATIONS
- Packed Qty: 10
- Commodity Code: 83024110
- Finish: Satin Stainless Steel
- Pvd Finish: No
- Material: Stainless Steel
- Material Grade: 304g Stainless Steel
- Range: Stainless Steel
- Overall Size: 200 x 20mm
- Feature Point 1: Keep 42 x 18mm
- Corrosion Grade: Grade 4
- Fire Rating: FD30/60
- Mechanical Warranty: 10 Years
- Internal/External: Internal
- Residential/Commercial: Residential/Commerical
- Size: 200 x 20mm
- Sub Brand: Stainless Steel
- Dia Bolt: 11mm
- Bolt Throw: 15mm
