Orbit 19mm Door Handle on 5mm Sprung Rose Grade 304 JSS01
Click Here - Product Description

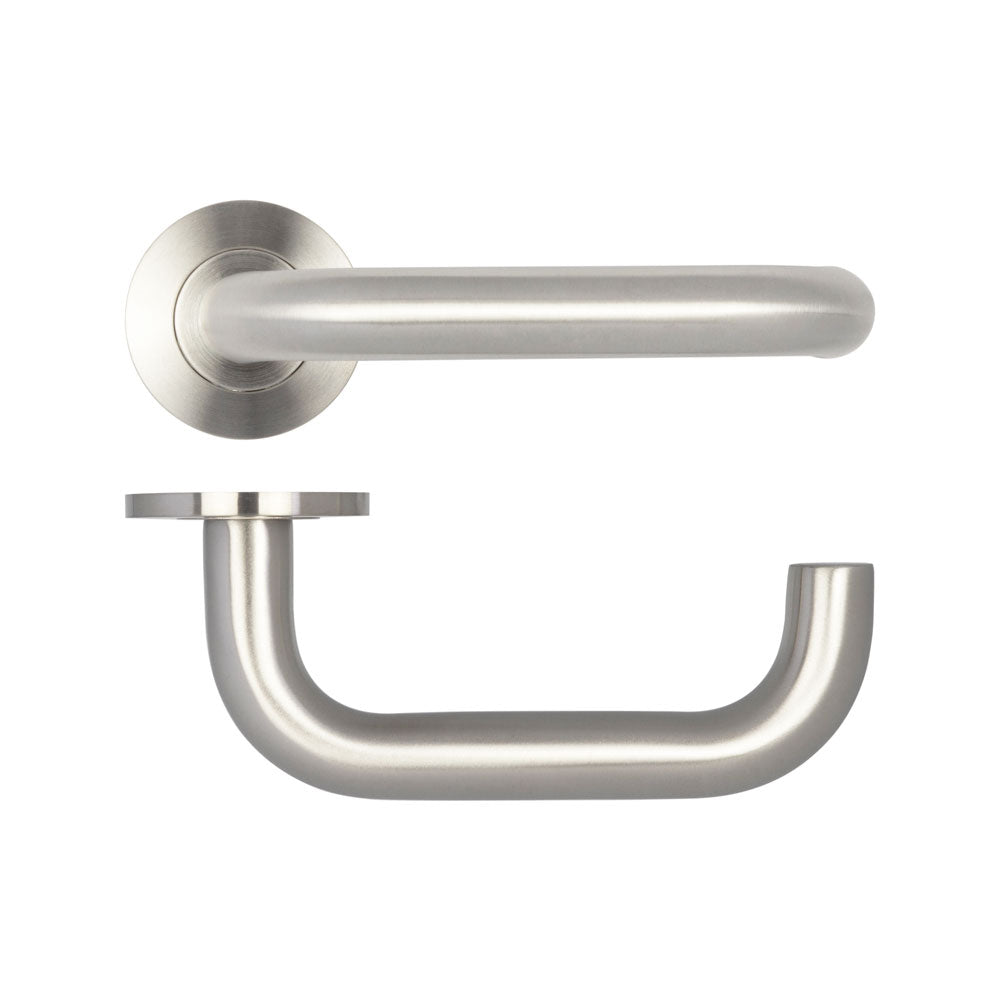

The Orbit stainless steel door handle on rose features a contemporary 19mm tubular lever with a D-shaped ‘return to door’ design. This ensures a secure grip while preventing clothing from catching, offering both safety and comfort. Ideal for modern residential and commercial projects, this stainless steel door handle delivers durability and style in equal measure.
KEY FEATURES
Material Grade: 304 Stainless Steel
Finish: Satin Stainless Steel
Corrosion Grade: 3 (suitable for internal and external use)
Fire Rating: FD30/60 compliant
BS EN 1906:2012: Grade 3 performance
BS 8300 Compliant: Yes, DDA compliant
Sprung: Unsprung
Suitable Door Thickness: 35–44mm
Fittings Included: Comes with everything needed for installation, including one spindle size (100mm), grub screws, JSS back-to-back fixings, and an Allen key
Use: Residential/Commercial
Mechanical Warranty: 10 Years
Dimensions
Lever Diameter: 19mm
Projection: 66mm
Rose Diameter: 52mm
Rose Thickness: 5mm
Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.
STANDARDS & CERTIFICATIONS
- Packed Qty: 20
- Commodity Code: 83024110
- Finish: Satin Stainless Steel
- Available Finishes: 1
- Pvd Finish: No
- Material: Stainless Steel
- Material Grade: 304g Stainless Steel
- Range: Stainless Steel
- Overall Size: 52 x 166mm
- Projection: 47mm
- Overall Projection: 65mm
- Rose Diameter: 52mm
- Rose Projection: 5mm
- Handle Length: 140mm
- Rose Centres: 38mm
- Suitable Door Thickness: 35-44mm
- Mechanical Cycles: 200,000
- Corrosion Grade: Grade 3
- Fire Rating: FD30/60
- Bs En 1906 2012: Grade 3
- Mechanical Warranty: 10 Years
- Internal/External: Internal/External
- Residential/Commercial: Residential/Commercial
- Sub Brand: Stainless Steel
