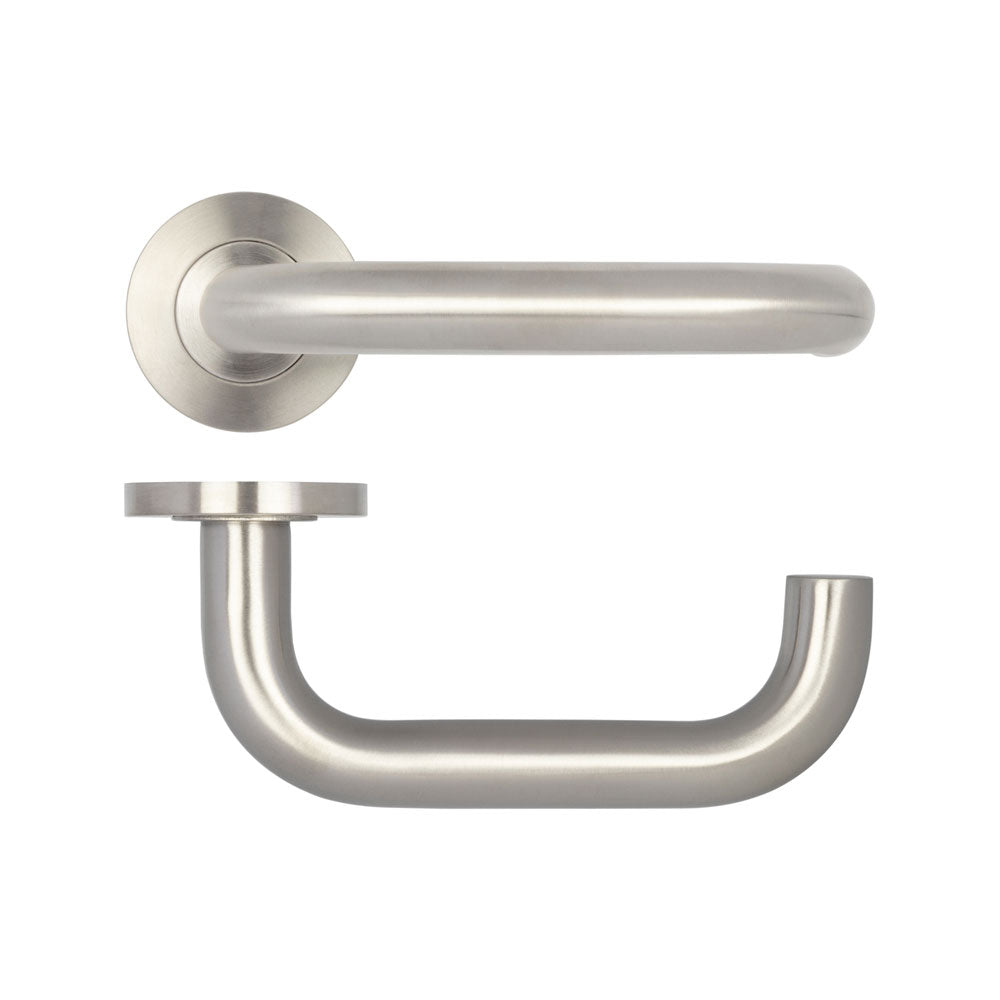

Orbit 19mm Door Handle on 8mm Sprung Rose Grade 304 JSS13
SKU: JSS13
Regular price
£6.76 GBP
Click Here - Product Description
KEY FEATURES:
Material: Grade 304 Stainless Steel
Cycles Tested: 200,000
Finish: Satin Stainless Steel
Suitable Door Thickness: 44mm - 54mm
Centre Fixings: 38mm
Corrosion Resistance: Rated Grade 3
BS EN 1906 2012: Grade 3
Fire Resistance: FD 30/60
Fittings Included: Comes with everything needed for installation, including one spindle size (100mm), grub screws, JSS back-to-back fixings, and an Allen key.
Use: Suitable for internal applications across both residential and commercial settings.
Mechanical Warranty: 10 Years
Dimensions
Lever Diameter: 19mm
Projection: 66mm
Rose Diameter: 52mm
Rose Thickness: 8mm
Tailored quotes are available for larger commercial projects — contact our team to discuss specifications and pricing.
STANDARDS & CERTIFICATIONS
- Packed Qty: 20
- Commodity Code: 83024110
- Finish: Satin Stainless Steel
- Available Finishes: 2
- Pvd Finish: No
- Material: Stainless Steel
- Material Grade: 304g Stainless Steel
- Range: Stainless Steel
- Overall Size: 52 x 156.50mm
- Projection: 51mm
- Overall Projection: 65mm
- Rose Diameter: 52mm
- Rose Projection: 8mm
- Handle Length: 140mm
- Rose Centres: 38mm
- Suitable Door Thickness: 44-54mm
- Mechanical Cycles: 200,000
- Corrosion Grade: Grade 3
- Fire Rating: FD30/60
- Bs En 1906 2012: Grade 3
- Mechanical Warranty: 10 Years
- Internal/External: Internal/External
- Residential/Commercial: Residential/Commercial
- Sub Brand: Stainless Steel
