Prices Exclude VAT
Non-Stock Item* - 4-5 days delivery approx

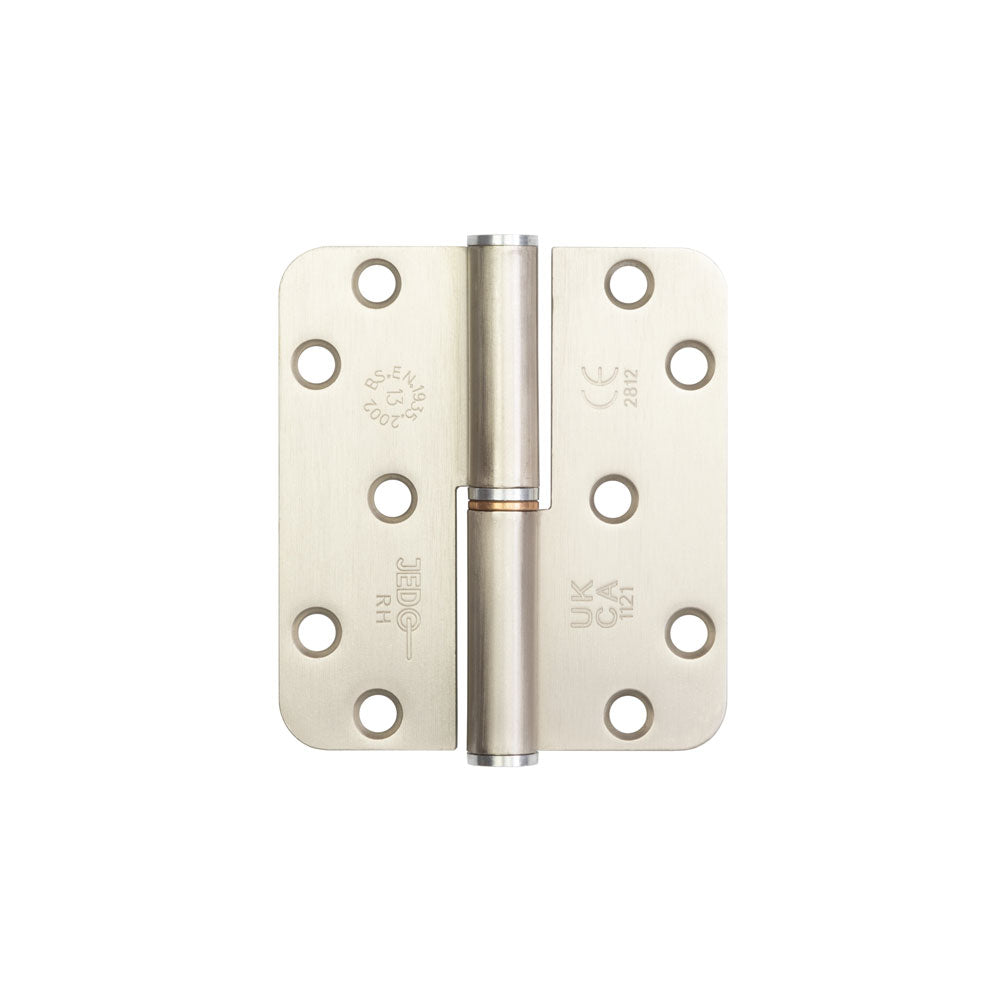

Right Hand Hand Lift Off hinge Grade 13
SKU: J9200SNRH
Regular price
£5.86 GBP
Click Here - Product Description
The Jedo Lift off Right Hand Hinge Grade 13 is a high-strength hinge ideal for fire doors and heavy-duty applications. It allows for easy door removal without unscrewing, perfect for maintenance and repairs.
KEY FEATURES:
- Material: Steel
- Finish: Satin Nickel

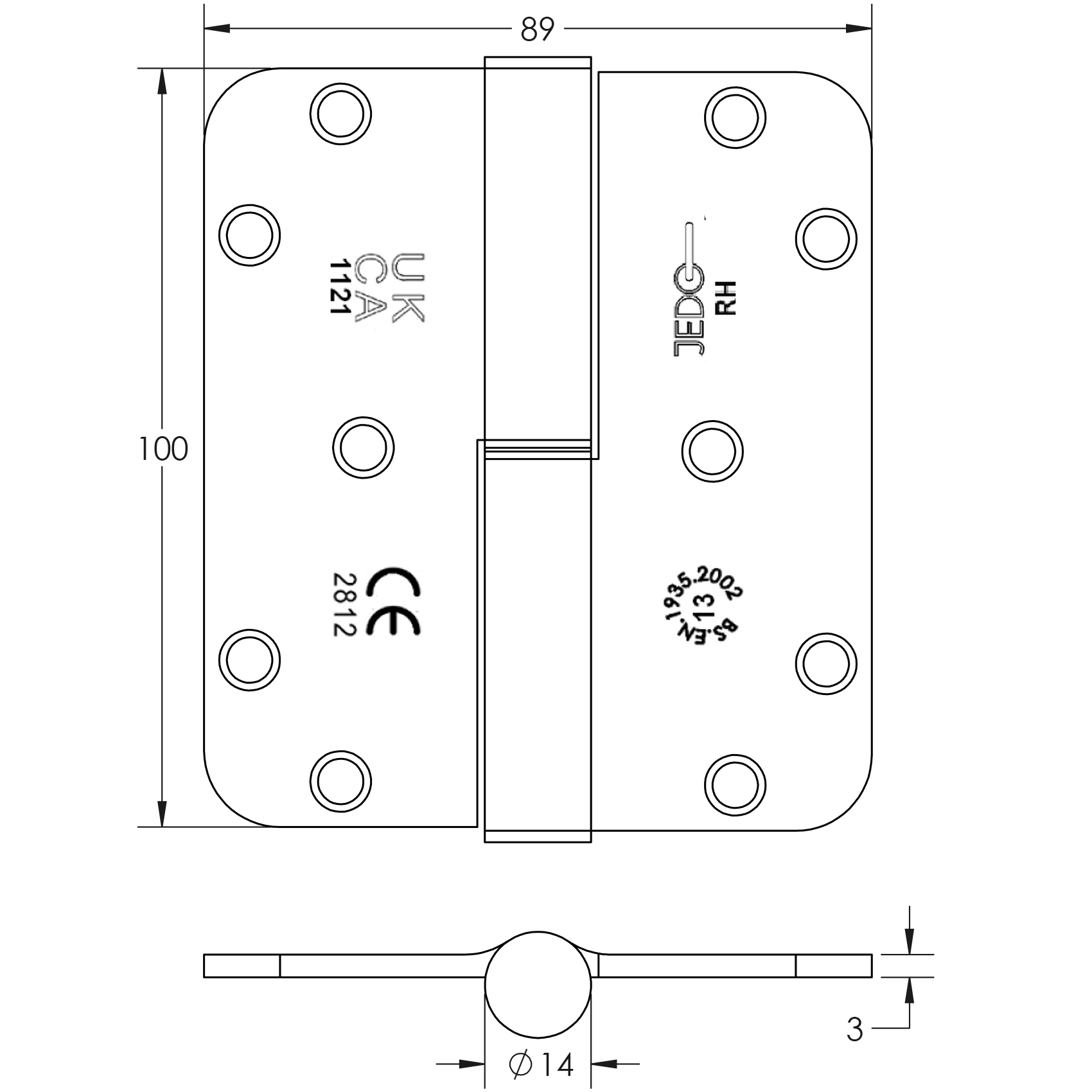

- Size: With dimensions of 100x89x3mm,
- Mechnical Cycles: 200,000
- Corrosion Resistance: Grade 4
- UKCA / CE: BS EN 1935 : 2002
- Grade 13 Classification: Meets the Grade 13 standard, providing assurance of durability and strength in demanding environments which supports doors up to 120kg with 3 hinges
- Fire Resistance: FD30/60
- Fittings Included: Comes complete with 16 x wood screws (thread length: 28mm & thread diameter: 5mm)
- Usage: Ideal for both commercial and residential settings where reliability and safety are essential.
We strongly recommend requesting a sample before committing to any cutting and drilling.
STANDARDS & CERTIFICATIONS
n.b fire tested when fitted with Intumescent hinge pad.
- Packed Qty: 40
- Commodity Code: 83021000
- Finish: Satin Nickel
- Available Finishes: 1
- Pvd Finish: No
- Material: Mild Steel
- Range: Jedo
- Overall Size: 100x89x3mm
- Leaf Thickness: 3mm
- Carryweight: Up to 120kg with 3 hinges
- Ce / Ukca: Yes
- Corrosion Grade: Grade 4
- Fire Rating: FD30/60
- Internal/External: Internal
- Residential/Commercial: Residential/Commerical
- Sub Brand: Stainless Steel
- Hand: Right Hand
Product documents
Non - Stock Item 5-7 days Delivery Approx.
